T7 Mount – One-Piece Mount with ERA Grip

With the T7 mount, ERATAC presents a ground­breaking new design concept. The inno­v­a­tive inlays with ERA Grip tech­nology, devel­oped specif­i­cally for this appli­ca­tion, ensure an absolutely secure hold of the rifle­scope – even under extreme recoil. Instal­la­tion requires no bonding or adhe­sives, and high tight­ening torques are no longer neces­sary. The belt-style clamping prin­ciple with hinged ring caps is signif­i­cantly gentler on the rifle­scope, espe­cially on models with thin main tubes.

All torque settings are clearly and perma­nently laser engraved. An addi­tional marking on the clamping jaws allows quick veri­fi­ca­tion of the tight­ening torque, even when no torque wrench is avail­able. There are no protruding parts along the entire mount, so snag­ging on equip­ment is elim­i­nated and weapons with a top charging handle can be oper­ated without restriction.

Tested with the highest rates of fire and the largest calibers under the most extreme conditions.

  • ERA Grip tech­nology for an absolutely secure hold of the riflescope
  • Weight reduc­tion of up to 40% compared to compa­rable products
  • Each ring with four self-centering inter­faces (9, 12, 3 o’clock and 45°)
  • Hinged ring caps for easier and more scope-friendly installation
  • Multiple ramps for aligning the rifle­scope using an align­ment tool
T7 Mount flyerPDF · 5 pages · 5.3 MBView PDF

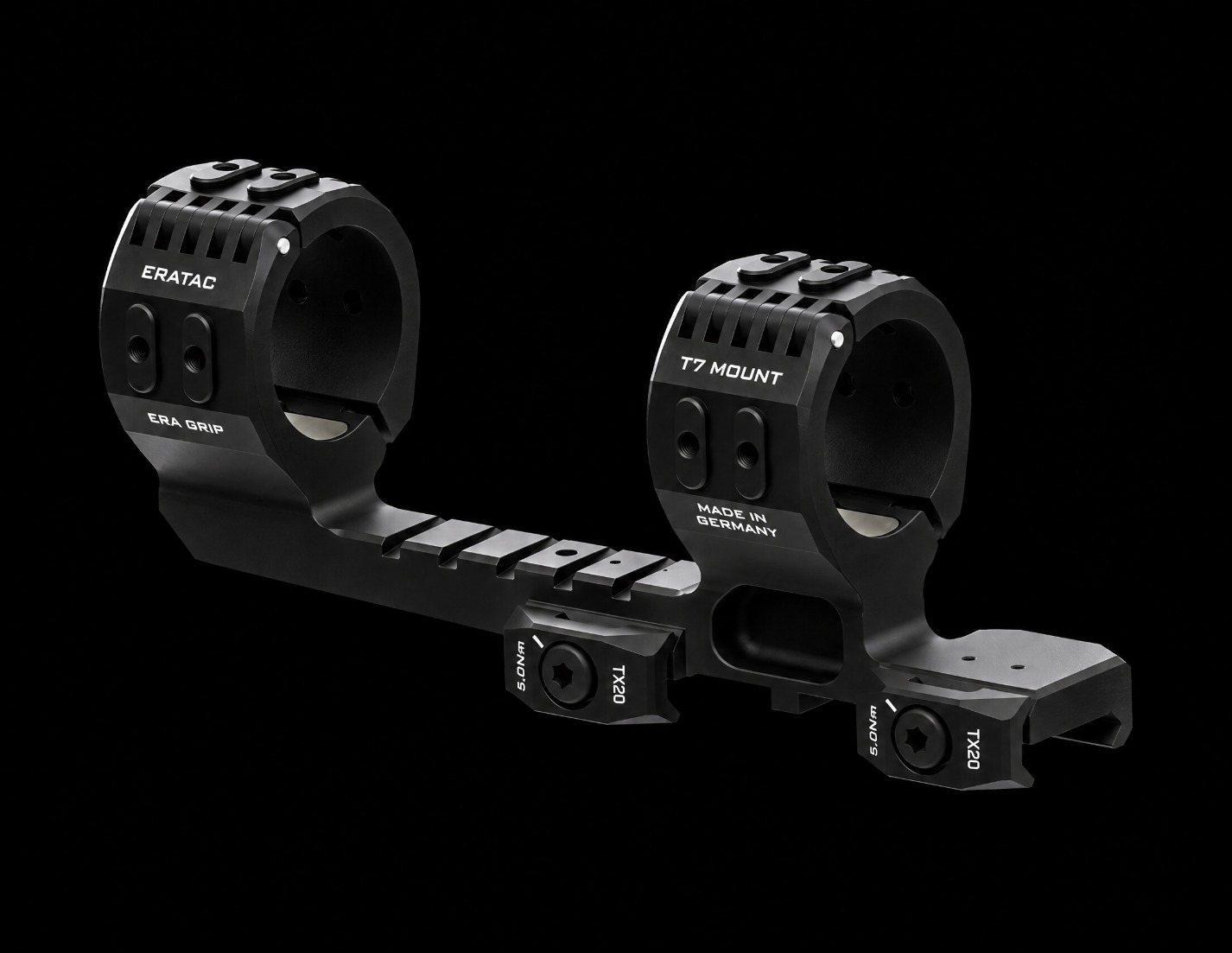

ERATAC T7 Montage – verlängerte Ausführung

Short or extended – the versions compared

ERATAC T7 Mount – short versionShort versionItem no. T7013 · T7014 · T7016
ERATAC T7 Mount – extended versionExtended versionItem no. T7023 · T7024 · T7026
Tube Ø
30 · 34 · 36 mm
30 · 34 · 36 mm
Height H
13 – 33 mm
20 – 35 mm
Center­line height AH
30 – 48 mm
38 – 48 mm
Incli­na­tion
none or 20 MOA
none or 20 MOA
Dimen­sions A / B
127 / 73 mm
122 / 68 mm
Dimen­sion G
–
65 mm
Weight
179 – 227 g
203 – 229 g
Vari­ants
12
10
Dimen­sions short
Dimen­sions extended

Differ­ences are shown in bold with a gold line. Values apply across all vari­ants of each version; see dimen­sional drawing in the flyer.

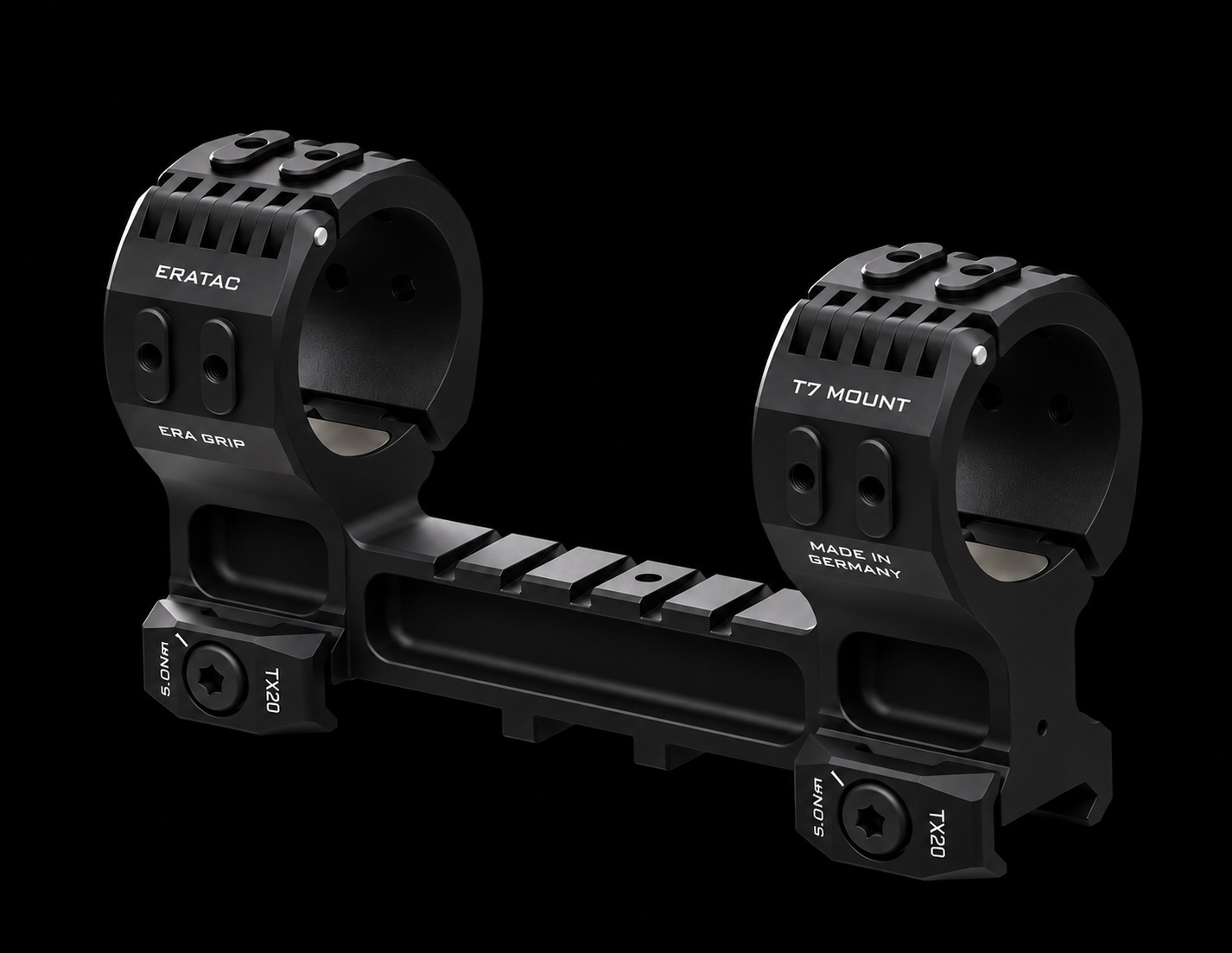

T7 Mount - short version

ø H AH MOA G A B F Item no. Weight
mm mm mm mm mm mm mm g
30 15 30 – – 127 73 9.3 T7013-0015 179
23 38 – – 127 73 11 T7013-0023 195
17 30 20 – 127 73 11.3 T7013-2017 184
25 38 20 – 127 73 13 T7013-2025 199
34 13 30 – – 127 73 7.3 T7014-0013 182
21 38 – – 127 73 11 T7014-0021 201
31 48 – – 127 73 11 T7014-0031 224
15 30 20 – 127 73 9.3 T7014-2015 188
23 38 20 – 127 73 11 T7014-2023 207
33 48 20 – 127 73 11 T7014-2033 227
36 20 38 – – 127 73 11 T7016-0020 209
22 38 20 – 127 73 11 T7016-2022 209

ø = tube diam­eter · H = height · AH = center­line height · MOA = incli­na­tion
All models: A = 127 mm, B = 73 mm. See dimen­sional drawing in the flyer.

ERATAC T7 Montage - kurze und verlängerte Ausführung im Vergleich

T7 Mount - extended version

ø H AH MOA G A B F Item no. Weight
mm mm mm mm mm mm mm g
30 23 38 – 65 122 68 11 T7023-0023 203
33 48 – 65 122 68 16.5 T7023-0033 215
25 38 20 65 122 68 11 T7023-2025 208
35 48 20 65 122 68 16.5 T7023-2035 220
34 21 38 – 65 122 68 9 T7024-0021 212
31 48 – 65 122 68 14.5 T7024-0031 224
23 38 20 65 122 68 9 T7024-2023 217
33 48 20 65 122 68 14.5 T7024-2033 229
36 20 38 – 65 122 68 8 T7026-0020 218
22 38 20 65 122 68 8 T7026-2022 222

ø = tube diam­eter · H = height · AH = center­line height · MOA = incli­na­tion
All models: G = 65 mm, A = 122 mm, B = 68 mm. See dimen­sional drawing in the flyer.

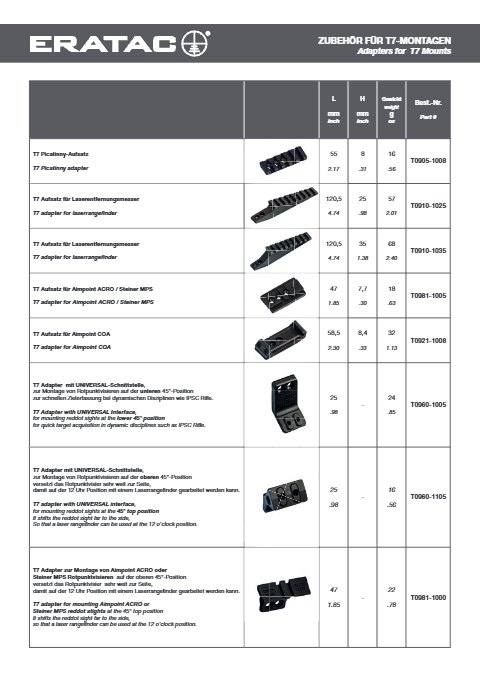

Adapters for T7 Mounts

Descrip­tion Item no. L mm H mm Weight g
T7 Picatinny adapter, centric T0905-1008 55 8 16
T7 adapter for laser rangefinders, H 25 T0910-1025 120.5 25 57
T7 adapter for laser rangefinders, H 35 T0910-1035 120.5 35 68
T7 adapter for Aimpoint ACRO / Steiner MPS T0981-1005 47 7.7 18
T7 adapter for Aimpoint COA T0921-1008 58.5 8.4 32
T7 adapter with UNIVERSAL inter­face, lower 45° position T0960-1005 25 – 24
T7 adapter with UNIVERSAL inter­face, upper 45° position T0960-1105 25 – 16
T7 adapter for Aimpoint ACRO / Steiner MPS, upper 45° position T0981-1000 47 – 22

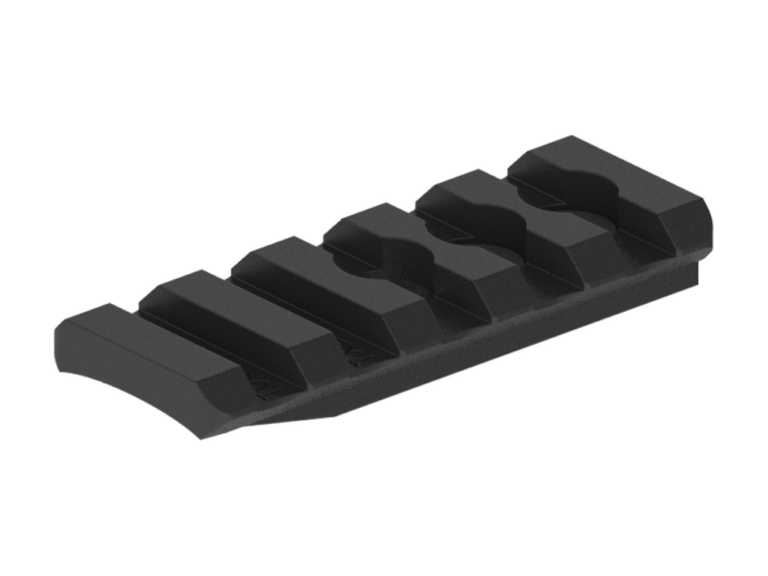

ERATAC T7 Picatinny adapter, centric – T0905-1008

T7 Picatinny adapter, centricT0905-1008L 55 mm · H 8 mm · 16 g

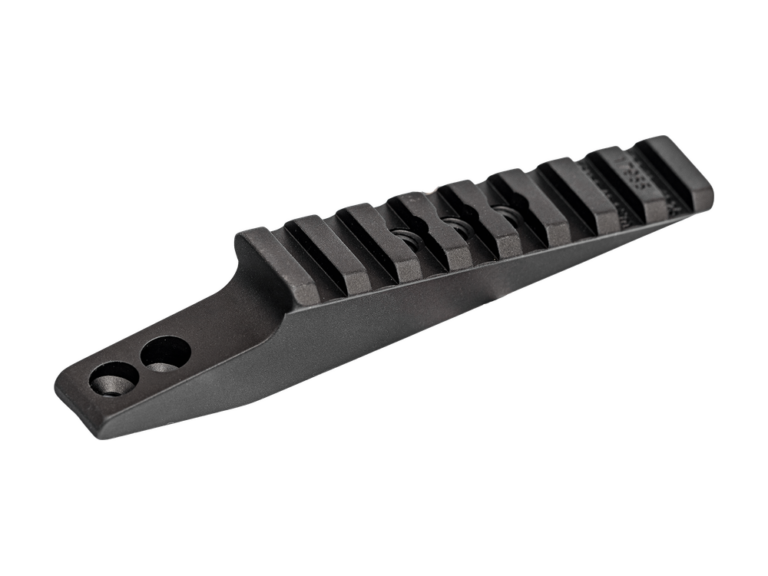

ERATAC T7 adapter for laser rangefinders, H 25 – T0910-1025

T7 adapter for laser rangefinders, H 25T0910-1025L 120.5 mm · H 25 mm · 57 g

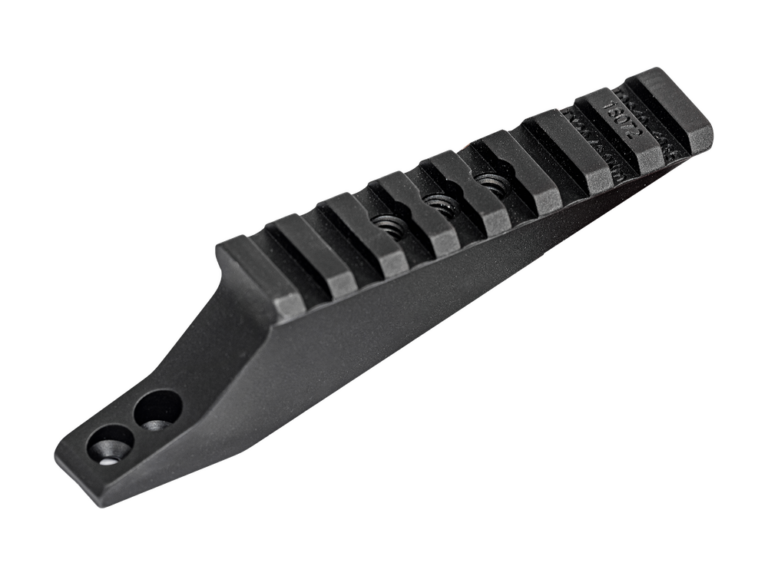

ERATAC T7 adapter for laser rangefinders, H 35 – T0910-1035

T7 adapter for laser rangefinders, H 35T0910-1035L 120.5 mm · H 35 mm · 68 g

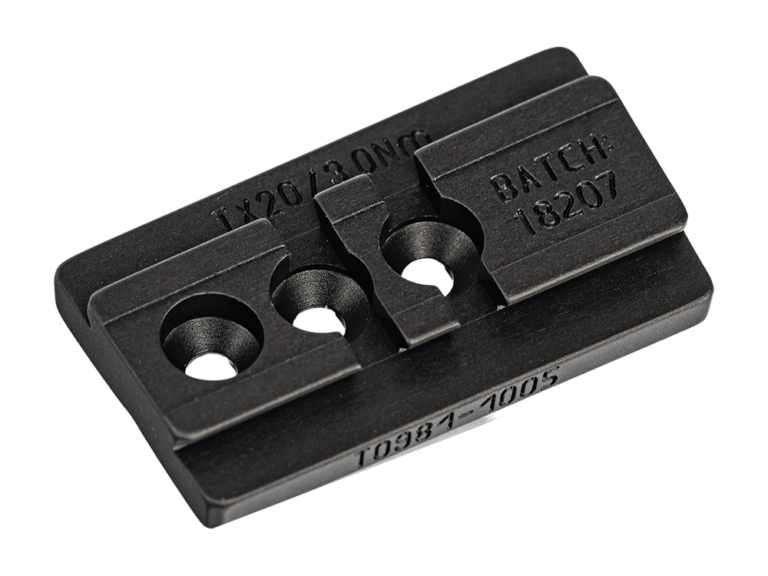

ERATAC T7 adapter for Aimpoint ACRO / Steiner MPS – T0981-1005

T7 adapter for Aimpoint ACRO / Steiner MPST0981-1005L 47 mm · H 7.7 mm · 18 gFor mounting Aimpoint ACRO and Steiner MPS. Mounted on the T0960-1005 adapter, the red dot sight sits in the lower 45° posi­tion – for quick target acqui­si­tion by tilting the rifle 45°.

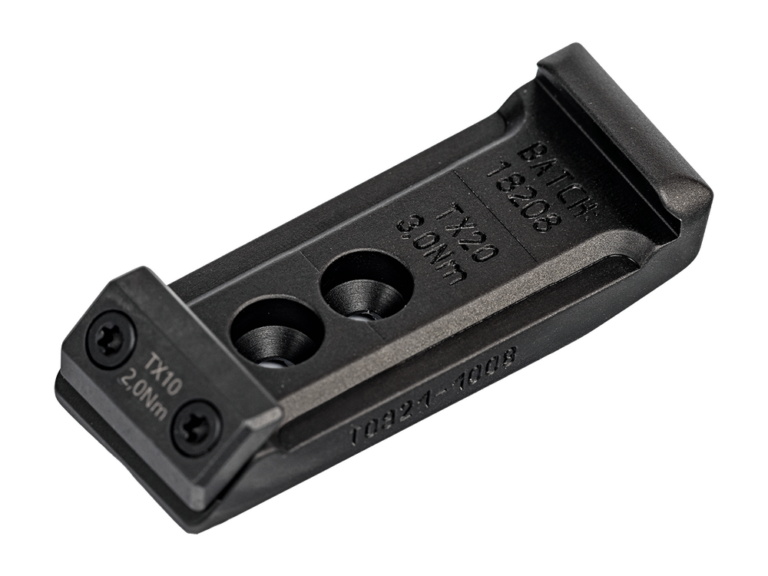

ERATAC T7 adapter for Aimpoint COA – T0921-1008

T7 adapter for Aimpoint COAT0921-1008L 58.5 mm · H 8.4 mm · 32 gFor centric mounting of an Aimpoint COA on the T7 mount.

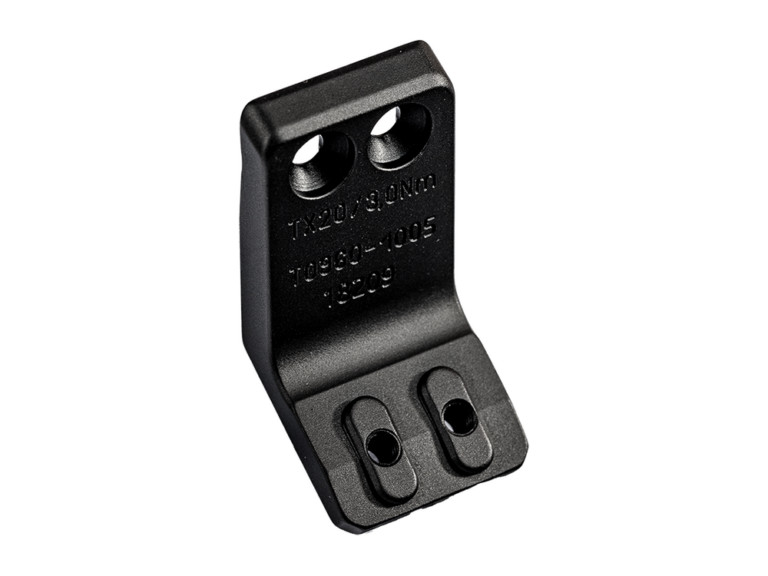

ERATAC T7 adapter with UNIVERSAL interface, lower 45° position – T0960-1005

T7 adapter with UNIVERSAL inter­face, lower 45° posi­tionT0960-1005L 25 mm · 24 gFor mounting red dot sights at the lower 45° posi­tion – for quick target acqui­si­tion in dynamic disci­plines such as IPSC Rifle.

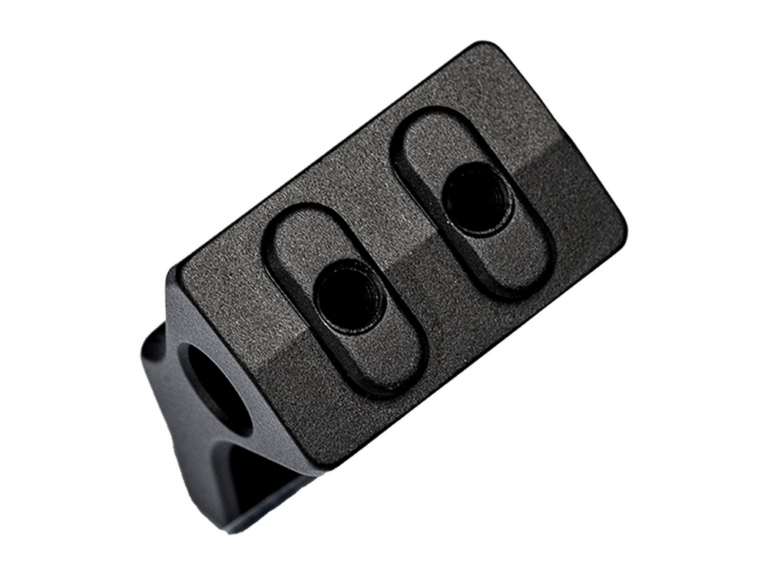

ERATAC T7 adapter with UNIVERSAL interface, upper 45° position – T0960-1105

T7 adapter with UNIVERSAL inter­face, upper 45° posi­tionT0960-1105L 25 mm · 16 gFor mounting red dot sights at the upper 45° posi­tion. The red dot sight sits far to the side, so a laser rangefinder can be used at the 12 o’clock posi­tion. Same func­tion as the T0981-1000, with addi­tional options for a wide variety of attachments.

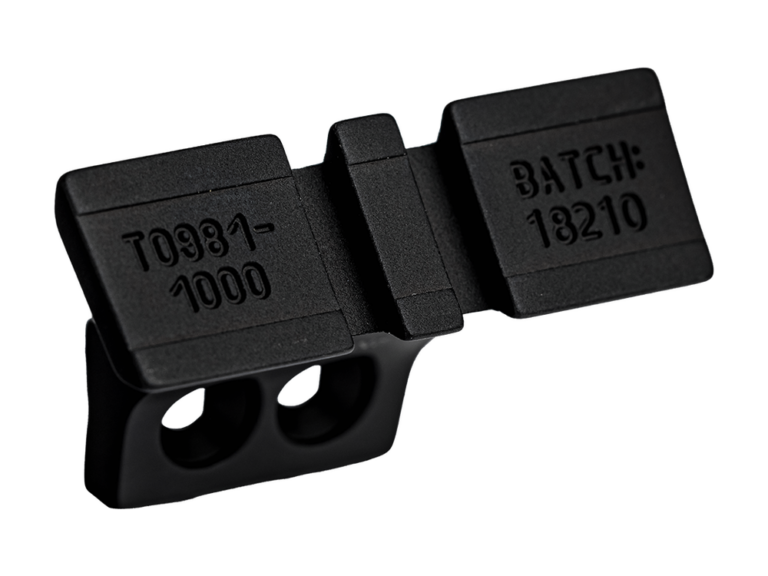

ERATAC T7 adapter for Aimpoint ACRO / Steiner MPS, upper 45° position – T0981-1000

T7 adapter for Aimpoint ACRO / Steiner MPS, upper 45° posi­tionT0981-1000L 47 mm · 22 gFor mounting Aimpoint ACRO or Steiner MPS at the upper 45° posi­tion. The red dot sight sits far to the side, so a laser rangefinder can be used at the 12 o’clock posi­tion – the control buttons remain freely accessible.

Coming soon:

  • Centric adapter for Trijicon RMR
  • Spacer H 6.0 mm / H 12.0 mm
  • Bubble level
  • Adapter for Angle Cosine Indicator
  • Adapter for SG Pulse

Impor­tant: The new inter­faces are not compat­ible with the attach­ments of the T4/T5 series.
Distri­b­u­tion outside the USA only.
